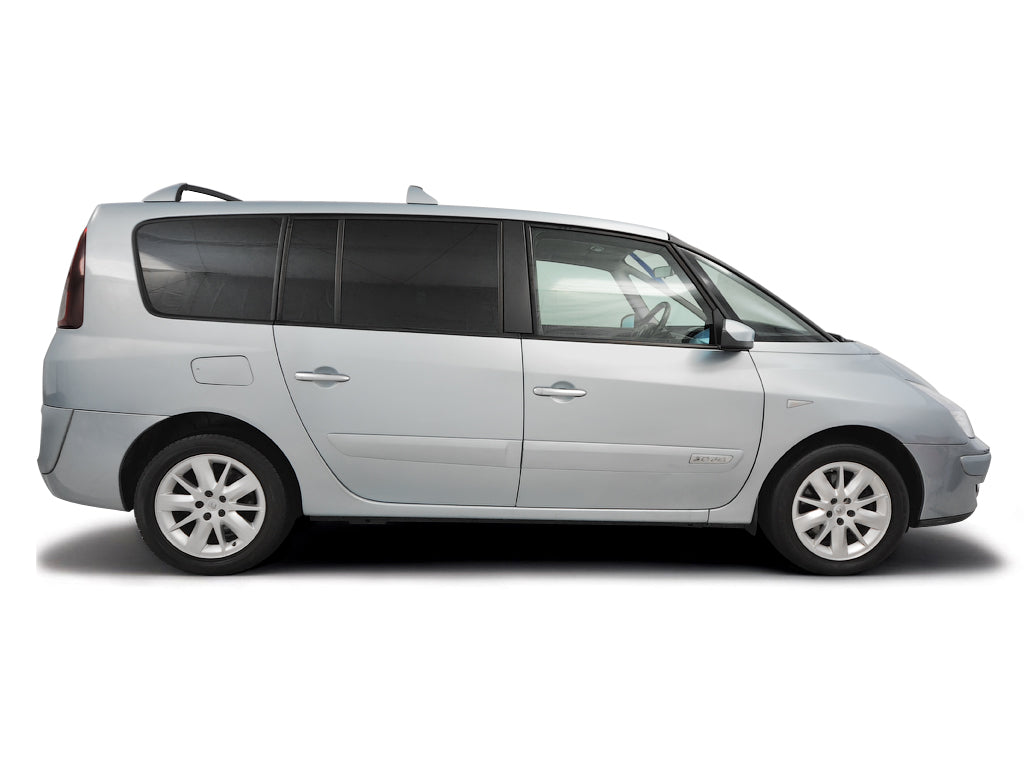

Air filter change Renault Espace 2006 - 2011

Air filter location

You have to remove the battery to get access to air filter box, start with negative (-) terminal first. Use 10mm spanner for this

Then undo positive terminal - use a 10mm socket or spanner

Undo battery clamp - use a 13mm socket and carefully remove battery

Undo the four Torx-20 retaining fixings

Carefully lift away the top section of the air filter body

Air filter in position

Now you can lift out the air filter

Clean off any debris on the surface of the filter. Replace with new filter if heavily contaminated

Check air filter box for debris. Clean if required. Now replace the air filter

Reassemble the air filter housing and battery
